Plywood Tank 250gallon

Postby Coln » Sun Mar 15, 2009 4:05 pm

Hi started this tank a few weeks ago to make this existing tank bigger but have been
reading TFG, 13lazd and 98dak83cam for a while which kinda made my mind up to
go for this tank.

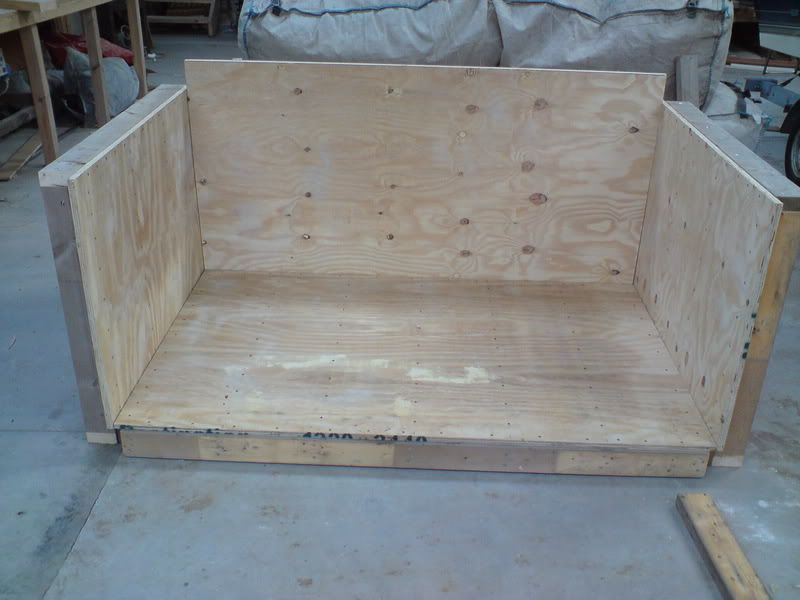

I'm making a 250gallon plywood tank which will be in the garage but viewed from the
lounge. I'm posting it on a uk forum as well hope thats cool, share everything yeah
Image[
/url]Image
User avatar
Coln

Joined: Mon Dec 17, 2007 1:04 pm
Location: Hopeman, Scotland.

Share On:

Share on Facebook Facebook Share on Twitter Twitter

Postby auratum » Sun Mar 15, 2009 4:23 pm

Cool! How will you be sealing the plywood?

Good luck with your build!
auratum

Joined: Thu Jul 06, 2006 5:57 pm
Location: MI

Postby Coln » Sun Mar 15, 2009 6:22 pm

auratum wrote:Cool! How will you be sealing the plywood?

Good luck with your build!


West system 105 Marine epoxy
User avatar
Coln

Joined: Mon Dec 17, 2007 1:04 pm
Location: Hopeman, Scotland.

Postby auratum » Sun Mar 15, 2009 9:11 pm

Cobain wrote:
auratum wrote:Cool! How will you be sealing the plywood?

Good luck with your build!


West system 105 Marine epoxy


Did you buy it yet? You may want to check out Progressive Epoxies. The web site is a bit confusing, but I think you get as good as or better product for a lot less money. This is what I will be using.

http://www.epoxyproducts.com/
auratum

Joined: Thu Jul 06, 2006 5:57 pm
Location: MI

Postby I3lazd » Sun Mar 15, 2009 10:01 pm

Also look at U.S. composites epoxy it was very well priced and works very good. I see you bolted the corners together but it looks like that is it. Are you planning on going back and lag bolting into each of the boards or are they already it is hard to tell in the picture? not sure but if not Just those screws will not hold all that pressure. I would also recommend putting braces on the top and bottom of each board. Can't be too safe. other than that is it lookin' good :thumb: . Good luck man it is an awesome project and well worth the time.
User avatar
I3lazd

Joined: Sun Dec 28, 2008 11:33 pm
Location: Littleton, Colorado

Postby Coln » Mon Mar 16, 2009 2:48 am

Already got the epoxy, am using 12mm/ 1/2" threaded rod to bolt all the panels together about
12" centres with 'lock' nuts
User avatar
Coln

Joined: Mon Dec 17, 2007 1:04 pm
Location: Hopeman, Scotland.

Postby I3lazd » Mon Mar 16, 2009 11:54 am

threaded rod is a pain in the a** to use. I tryed that originally then switched over to the lag bolts. Here is what I used to bolt down my tank, you just need to pre-drill as to not split the wood.
These are much easier to work with.
User avatar
I3lazd

Joined: Sun Dec 28, 2008 11:33 pm
Location: Littleton, Colorado

Postby Coln » Mon Mar 16, 2009 2:39 pm

Think I need the strength of the 12mm bolts and cause the tank will be on two concrete block
walls I can get below to tighten the nuts. Plywood is 18mm and framing is 100mm x 50mm and
glued and screwed and is really solid

User avatar
Coln

Joined: Mon Dec 17, 2007 1:04 pm
Location: Hopeman, Scotland.

Postby I3lazd » Mon Mar 16, 2009 5:40 pm

Those will works great I was just tryin to save you some time and hassel.
User avatar
I3lazd

Joined: Sun Dec 28, 2008 11:33 pm
Location: Littleton, Colorado

Re: Plywood Tank 250gallon

Postby Coln » Tue Mar 17, 2009 4:02 pm

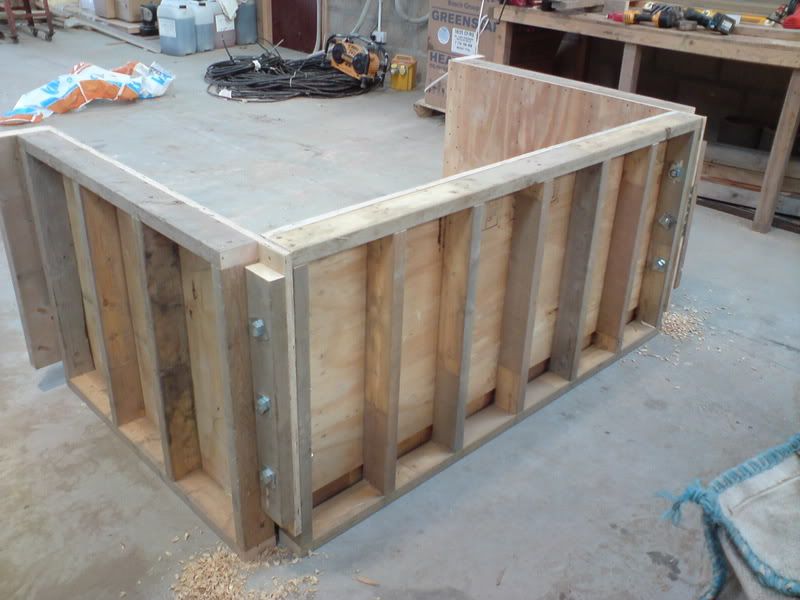

Frame enlarged, mate just built a house and had excess yellow pine cheers Neil :thumb:

User avatar
Coln

Joined: Mon Dec 17, 2007 1:04 pm
Location: Hopeman, Scotland.

Postby Coln » Sat Mar 21, 2009 9:31 am

Finished the epoxy well impressed with west epoxy really pleased with finish


User avatar
Coln

Joined: Mon Dec 17, 2007 1:04 pm
Location: Hopeman, Scotland.

Postby I3lazd » Sat Mar 21, 2009 10:42 am

are you going to just silicone the seams together or go back and fiberglass them together?
User avatar
I3lazd

Joined: Sun Dec 28, 2008 11:33 pm
Location: Littleton, Colorado

Postby Coln » Sat Mar 21, 2009 11:00 am

Going to silicon it all together, the silicon will just be a seal cos the bolts will hold the tank
together plus if it does have to come apart for any reason would be a bit easier
User avatar
Coln

Joined: Mon Dec 17, 2007 1:04 pm
Location: Hopeman, Scotland.

Postby I3lazd » Sat Mar 21, 2009 11:40 am

ya that is how i plan on doing my next one exactly how you are doing it it is way more effective. :thumb:
User avatar
I3lazd

Joined: Sun Dec 28, 2008 11:33 pm
Location: Littleton, Colorado

Postby auratum » Sat Mar 21, 2009 11:46 am

Looking good!

Did you use fiberglass cloth with the resin? If so, what weight cloth did you use? Did you do mulitple layers?

Thanks!
Patrick
auratum

Joined: Thu Jul 06, 2006 5:57 pm
Location: MI
